ContX IQ: delete nodes and relationships.

Delete all Contract nodes for a Person node.

ContX IQ: delete nodes and relationships.

Delete all Contract nodes for a Person node.

Use case

When a new Application with new credentials is created, _Application and _AppAgent nodes are created in the IKG.

In order to create a relationship between these nodes and the ingest data, a CIQ write query can be used.

This will allow the use of the _Application as an authenticated subject.

In this case, a HAS_AGREEMENT_WITH relationship is created between the _Application node and a company node.

Once the relationship is created, a new policy is created to designate the derived query which can delete the contract node.

The query designates the node to delete.

Note that the deletion of the Resource node will also delete the related Property nodes.

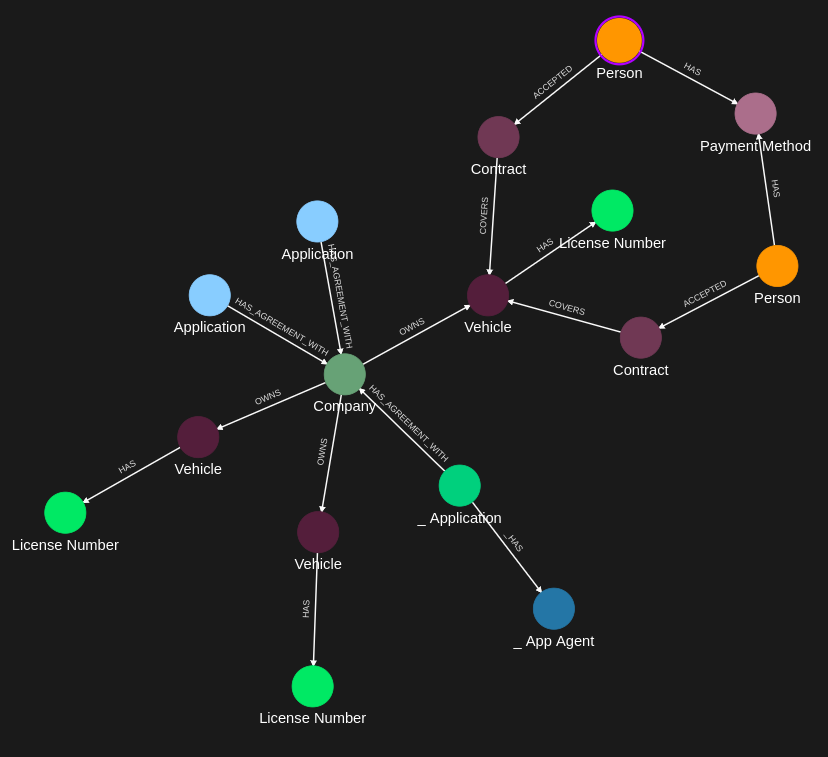

ikg

Requirements

- ServiceAccount credentials created in the IndyKite Hub for your organization.

- AppAgent credentials created in the IndyKite Hub, using the REST endpoints or using Terraform for your Project / Application.

Steps

1. Using the AppAgent credential as API Key (name: X-IK-ClientKey), ingest data in your IKG (IndyKite Knowledge Graph) using the script provided.

2. Using the ServiceAccount credential as Bearer token, create a CIQ Policy which designates the derived query can create the HAS_AGREEMENT_WITH relationship.

3. Using the ServiceAccount credential as Bearer token, create a CIQ Query which designates the relationship to upsert.

4. Using the AppAgent credential as API Key (name: X-IK-ClientKey), run a CIQ Execution.

5. Using the ServiceAccount credential as Bearer token, create a CIQ Policy which designates the derived query which can delete the contract node.

6. Using the ServiceAccount credential as Bearer token, create a CIQ Query in the context of the policy to delete the data.

7. Using the AppAgent credential as API Key (name: X-IK-ClientKey), run a CIQ Execution.

8. Delete your configuration.

Step 1

Ingest the nodes needed for this use case.

POST https://eu.api.indykite.com/capture/v1/nodes/Json
{
  "nodes": [
    {
      "external_id": "alice",
      "is_identity": true,
      "type": "Person",
      "properties": [
        {
          "type": "email",
          "value": "alice@email.com"
        },
        {
          "type": "given_name",
          "value": "Alice"
        },
        {
          "type": "last_name",
          "value": "Smith"
        }
      ]
    },
    {
      "external_id": "ryan",
      "is_identity": true,
      "type": "Person",
      "properties": [
        {
          "type": "email",
          "value": "ryan@yahoo.co.uk"
        },
        {
          "type": "given_name",
          "value": "ryan"
        },
        {
          "type": "last_name",
          "value": "mushu"
        }
      ]
    },
    {
      "external_id": "tilda",
      "is_identity": true,
      "type": "Person",
      "properties": [
        {
          "type": "email",
          "value": "tilda@yahoo.co.uk"
        },
        {
          "type": "given_name",
          "value": "tilda"
        },
        {
          "type": "last_name",
          "value": "mushu"
        }
      ]
    },
    {
      "external_id": "cb123",
      "type": "PaymentMethod",
      "properties": [
        {
          "type": "payment_name",
          "value": "Credit Card"
        }
      ]
    },
    {
      "external_id": "kl123",
      "type": "PaymentMethod",
      "properties": [
        {
          "type": "payment_name",
          "value": "Klarna"
        }
      ]
    },
    {
      "external_id": "ct123",
      "type": "Contract",
      "properties": [
        {
          "type": "category",
          "value": "Insurance"
        },
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "hfgrten123",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "ct234",
      "type": "Contract",
      "properties": [
        {
          "type": "category",
          "value": "Insurance"
        },
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "hfgrten234",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "ct985",
      "type": "Contract",
      "properties": [
        {
          "type": "category",
          "value": "Insurance"
        },
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "hfgrten985",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "car1",
      "type": "Vehicle",
      "properties": [
        {
          "type": "category",
          "value": "Car"
        },
        {
          "type": "is_active",
          "value": true
        },
        {
          "type": "vin",
          "value": "rtfhcnvjt471"
        }
      ]
    },
    {
      "external_id": "car2",
      "type": "Vehicle",
      "properties": [
        {
          "type": "category",
          "value": "Car"
        },
        {
          "type": "is_active",
          "value": true
        },
        {
          "type": "vin",
          "value": "kdcbfrt178"
        }
      ]
    },
    {
      "external_id": "truck1",
      "type": "Vehicle",
      "properties": [
        {
          "type": "category",
          "value": "Truck"
        },
        {
          "type": "is_active",
          "value": true
        },
        {
          "type": "vin",
          "value": "sncnrkcldp"
        }
      ]
    },
    {
      "external_id": "license1",
      "type": "LicenseNumber",
      "properties": [
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "AX123456",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "license2",
      "type": "LicenseNumber",
      "properties": [
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "OL123456",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "license3",
      "type": "LicenseNumber",
      "properties": [
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "VN123456",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "company1",
      "type": "Company",
      "properties": [
        {
          "type": "name",
          "value": "Company1"
        },
        {
          "type": "registration",
          "value": "256314523"
        }
      ]
    },
    {
      "external_id": "company2",
      "type": "Company",
      "properties": [
        {
          "type": "name",
          "value": "Company2"
        },
        {
          "type": "registration",
          "value": "942365123"
        }
      ]
    },
    {
      "external_id": "application1",
      "type": "Application",
      "properties": [
        {
          "type": "name",
          "value": "Application"
        }
      ]
    },
    {
      "external_id": "application2",
      "type": "Application",
      "properties": [
        {
          "type": "name",
          "value": "Application2"
        }
      ]
    }
  ]
}

Ingest the relationships needed for this use case.

POST https://eu.api.indykite.com/capture/v1/relationships/Json
{
  "relationships": [
    {
      "source": {
        "external_id": "ryan",
        "type": "Person"
      },
      "target": {
        "external_id": "cb123",
        "type": "PaymentMethod"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "tilda",
        "type": "Person"
      },
      "target": {
        "external_id": "kl123",
        "type": "PaymentMethod"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "alice",
        "type": "Person"
      },
      "target": {
        "external_id": "cb123",
        "type": "PaymentMethod"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "ryan",
        "type": "Person"
      },
      "target": {
        "external_id": "ct123",
        "type": "Contract"
      },
      "type": "ACCEPTED"
    },
    {
      "source": {
        "external_id": "tilda",
        "type": "Person"
      },
      "target": {
        "external_id": "ct234",
        "type": "Contract"
      },
      "type": "ACCEPTED"
    },
    {
      "source": {
        "external_id": "alice",
        "type": "Person"
      },
      "target": {
        "external_id": "ct985",
        "type": "Contract"
      },
      "type": "ACCEPTED"
    },
    {
      "source": {
        "external_id": "ct123",
        "type": "Contract"
      },
      "target": {
        "external_id": "car1",
        "type": "Vehicle"
      },
      "type": "COVERS"
    },
    {
      "source": {
        "external_id": "ct985",
        "type": "Contract"
      },
      "target": {
        "external_id": "car1",
        "type": "Vehicle"
      },
      "type": "COVERS"
    },
    {
      "source": {
        "external_id": "ct234",
        "type": "Contract"
      },
      "target": {
        "external_id": "truck1",
        "type": "Vehicle"
      },
      "type": "COVERS"
    },
    {
      "source": {
        "external_id": "car1",
        "type": "Vehicle"
      },
      "target": {
        "external_id": "license1",
        "type": "LicenseNumber"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "truck1",
        "type": "Vehicle"
      },
      "target": {
        "external_id": "license2",
        "type": "LicenseNumber"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "car2",
        "type": "Vehicle"
      },
      "target": {
        "external_id": "license3",
        "type": "LicenseNumber"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "company1",
        "type": "Company"
      },
      "target": {
        "external_id": "car1",
        "type": "Vehicle"
      },
      "type": "OWNS"
    },
    {
      "source": {
        "external_id": "company1",
        "type": "Company"
      },
      "target": {
        "external_id": "car2",
        "type": "Vehicle"
      },
      "type": "OWNS"
    },
    {
      "source": {
        "external_id": "company1",
        "type": "Company"
      },
      "target": {
        "external_id": "truck1",
        "type": "Vehicle"
      },
      "type": "OWNS"
    },
    {
      "source": {
        "external_id": "application1",
        "type": "Application"
      },
      "target": {
        "external_id": "company1",
        "type": "Company"
      },
      "type": "HAS_AGREEMENT_WITH"
    },
    {
      "source": {
        "external_id": "application2",
        "type": "Application"
      },
      "target": {
        "external_id": "company1",
        "type": "Company"
      },
      "type": "HAS_AGREEMENT_WITH"
    }
  ]
}

Step 2

Policy which designates the derived query can create the HAS_AGREEMENT_WITH relationship.

When the subject is _Application, the $_appId input does not need to be provided in the CIQ Execution and is automatically assigned the subject.external_id value.

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "_Application"
  },
  "condition": {
    "cypher": "MATCH (subject:_Application) MATCH (company:Company)-[r2:OWNS]->(vehicle:Vehicle)",
    "filter": [
      {
        "operator": "AND",
        "operands": [
          {
            "attribute": "subject.external_id",
            "operator": "=",
            "value": "$_appId"
          },
          {
            "attribute": "company.external_id",
            "operator": "=",
            "value": "$companyID"
          }
        ]
      }
    ]
  },
  "allowed_upserts": {
    "relationships": {
      "relationship_types": [
        {
          "type": "HAS_AGREEMENT_WITH",
          "source_node_label": "_Application",
          "target_node_label": "Company"
        }
      ]
    }
  },
  "allowed_reads": {
    "nodes": [
      "company.*",
      "subject.*"
    ]
  }
}

Request to create a CIQ Policy configuration using REST.

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"_Application\"},\"condition\":{\"cypher\":\"MATCH (subject:_Application) MATCH (company:Company)-[r2:OWNS]->(vehicle:Vehicle)\",\"filter\":[{\"operator\":\"AND\",\"operands\":[{\"attribute\":\"subject.external_id\",\"operator\":\"=\",\"value\":\"$_appId\"},{\"attribute\":\"company.external_id\",\"operator\":\"=\",\"value\":\"$companyID\"}]}]},\"allowed_upserts\":{\"relationships\":{\"relationship_types\":[{\"type\":\"HAS_AGREEMENT_WITH\",\"source_node_label\":\"_Application\",\"target_node_label\":\"Company\"}]}},\"allowed_reads\":{\"nodes\":[\"company.*\",\"subject.*\"]}}",
  "status": "ACTIVE",
  "tags": []
}

Request to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 3

The CIQ Query designates the relationship to upsert.

knowledge_query.jsonJson
{
  "nodes": [
    "subject.external_id"
  ],
  "relationships": [
    "r1"
  ],
  "upsert_relationships": [
    {
      "name": "r1",
      "source": "subject",
      "target": "company",
      "type": "HAS_AGREEMENT_WITH"
    }
  ]
}

Request to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"subject.external_id\"],\"relationships\":[\"r1\"],\"upsert_relationships\":[{\"name\":\"r1\",\"source\":\"subject\",\"target\":\"company\",\"type\":\"HAS_AGREEMENT_WITH\"}]}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 4

CIQ Execution request in json format.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "ciq_query_gid",
  "input_params": {
    "companyID": "company1"
  }
}

CIQ Execution response in json format.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "subject.external_id": "application_external_id"
      },
      "relationships": {
        "r1": {
          "Id": 1152932499723124700,
          "ElementId": "5:3a2b09d5-2923-45d7-8453-8b1c698427b0:1152932499723124736",
          "StartId": 0,
          "StartElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:0",
          "EndId": 15,
          "EndElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:15",
          "Type": "HAS_AGREEMENT_WITH",
          "Props": {
            "create_time": "2025-06-09T15:12:46.374Z",
            "id": "48BJHS2CTFKcVpD4cUF8IA",
            "update_time": "2025-06-09T15:12:46.374Z"
          }
        }
      }
    },
    {
      "nodes": {
        "subject.external_id": "application_external_id"
      },
      "relationships": {
        "r1": {
          "Id": 1152932499723124700,
          "ElementId": "5:3a2b09d5-2923-45d7-8453-8b1c698427b0:1152932499723124736",
          "StartId": 0,
          "StartElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:0",
          "EndId": 15,
          "EndElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:15",
          "Type": "HAS_AGREEMENT_WITH",
          "Props": {
            "create_time": "2025-06-09T15:12:46.374Z",
            "id": "48BJHS2CTFKcVpD4cUF8IA",
            "update_time": "2025-06-09T15:12:46.374Z"
          }
        }
      }
    },
    {
      "nodes": {
        "subject.external_id": "application_external_id"
      },
      "relationships": {
        "r1": {
          "Id": 1152932499723124700,
          "ElementId": "5:3a2b09d5-2923-45d7-8453-8b1c698427b0:1152932499723124736",
          "StartId": 0,
          "StartElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:0",
          "EndId": 15,
          "EndElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:15",
          "Type": "HAS_AGREEMENT_WITH",
          "Props": {
            "create_time": "2025-06-09T15:12:46.374Z",
            "id": "48BJHS2CTFKcVpD4cUF8IA",
            "update_time": "2025-06-09T15:12:46.374Z"
          }
        }
      }
    }
  ]
}

Step 5

CIQ Policy which designates the derived query which can delete the contract node.

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "_Application"
  },
  "condition": {
    "cypher": "MATCH (subject : _Application)-[r1:HAS_AGREEMENT_WITH]->(company:Company)-[r2:OWNS]->(vehicle:Vehicle)<-[r3:COVERS]-(contract:Contract)<-[r4:ACCEPTED]-(person:Person)",
    "filter": [
      {
        "operator": "AND",
        "operands": [
          {
            "attribute": "subject.external_id",
            "operator": "=",
            "value": "$_appId"
          },
          {
            "attribute": "person.external_id",
            "operator": "=",
            "value": "$personID"
          }
        ]
      }
    ]
  },
  "allowed_deletes": {
    "nodes": [
      "contract"
    ]
  },
  "allowed_reads": {
    "nodes": [
      "person.*"
    ]
  }
}

Request to create a CIQ Policy configuration using REST

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"_Application\"},\"condition\":{\"cypher\":\"MATCH (subject : _Application)-[r1:HAS_AGREEMENT_WITH]->(company:Company)-[r2:OWNS]->(vehicle:Vehicle)<-[r3:COVERS]-(contract:Contract)<-[r4:ACCEPTED]-(person:Person)\",\"filter\":[{\"operator\":\"AND\",\"operands\":[{\"attribute\":\"subject.external_id\",\"operator\":\"=\",\"value\":\"$_appId\"},{\"attribute\":\"person.external_id\",\"operator\":\"=\",\"value\":\"$personID\"}]}]},\"allowed_deletes\":{\"nodes\":[\"contract\"]},\"allowed_reads\":{\"nodes\":[\"person.*\"]}}",
  "status": "ACTIVE",
  "tags": []
}

Request to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 6

Create a CIQ Query in the context of the policy to delete the data.

knowledge_query.jsonJson
{
  "nodes": [
    "person.external_id"
  ],
  "delete_nodes": [
    "contract"
  ]
}

Request to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"person.external_id\"],\"delete_nodes\":[\"contract\"]}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 7

CIQ Execution request.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "personID": "tilda"
  }
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "person.external_id": "tilda"
      }
    },
    {
      "nodes": {
        "person.external_id": "tilda"
      }
    },
    {
      "nodes": {
        "person.external_id": "tilda"
      }
    }
  ]
}

Step 8

Delete the CIQ Queries.

DELETE https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Delete the CIQ Policies.

DELETE https://eu.api.indykite.com/configs/v1/authorization-policies/{id}Json
{
  "id": "your_policy_configuration_gid"
}

ikg

Tags

CIQ Policy CIQ Query CIQ Execution Security

Related Resources

ContX IQ basic example

ContX IQ Python

ContX IQ: list authorized resources.

ContX IQ Python

ContX IQ: allow READ action

ContX IQ Json

ContX IQ: allow creation nodes and relationships.

ContX IQ Json

ContX IQ: upsert relationships

ContX IQ Json

ContX IQ: loyalty program.

ContX IQ Json

ContX IQ: link the _Application node to other data in the IKG.

ContX IQ Json

ContX IQ: With _Application node as a subject, read resources and upsert relationships and nodes.

ContX IQ Json

ContX IQ: With User node as a subject, read resources and upsert relationships and nodes.

ContX IQ Json

ContX IQ: With Person node as a subject, gives a company a consent on a payment method and then revokes it.

ContX IQ Json
