ContX IQ ContX IQ Json

ContX IQ: allow creation nodes and relationships.

An Application node is allowed to create a Contract node and link it to existing Person and Vehicle nodes where the Vehicle node is owned by a company with which the Application has an Agreement.

ContX IQ: allow creation nodes and relationships.

An Application node is allowed to create a Contract node and link it to existing Person and Vehicle nodes. where the Vehicle node is owned by a company with which the Application has an Agreement.

Use case

The query allows derived queries to create:

1. New nodes with the label Contract.

2. New relationships, of type COVERS, between Contract and Vehicle nodes.

3. New relationships, of type ACCEPTED, between Person and Contract nodes.

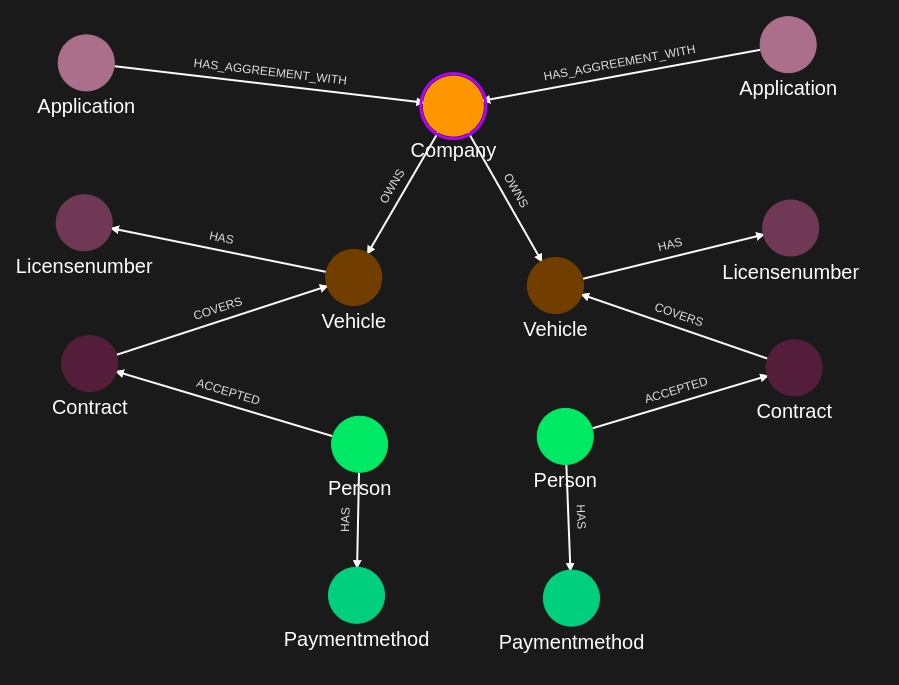

ikg

Requirements

- ServiceAccount credentials created in the IndyKite Hub for your organization.

- AppAgent credentials created in the IndyKite Hub, using the REST endpoints or using Terraform for your Project / Application.

Steps

1. Using the AppAgent credential as API Key (name: X-IK-ClientKey), ingest data in your IKG (IndyKite Knowledge Graph) using the script provided.

2. Using the ServiceAccount credential as Bearer token, create CIQ Policy, with _Application as subject.

When a new Application with new credentials is created, _Application and _AppAgent nodes are created in the IKG.

In order to create a relationship between these nodes and the ingest data, a CIQ write query can be used.

This will allow the use of the _Application as an authenticated subject.

We add a filter with attribute: subject.external_id and value: $_appId (reserved value).

When the subject is _Application, the $_appId input does not need to be provided in the CIQ Execution and is automatically assigned the subject.external_id value.

In this case, a HAS_AGREEMENT_WITH relationship is created between the _Application node and a company node.

3. Using the ServiceAccount credential as Bearer token, create a CIQ Query.

4. Using the AppAgent credential as API Key (name: X-IK-ClientKey), run a CIQ Execution to link the _Application node.

5. Using the ServiceAccount credential as Bearer token, create CIQ Policy, with _Application as subject.

6. Using the ServiceAccount credential as Bearer token, create a CIQ Query in the context of the policy to upsert the data.

7. Using the AppAgent credential as API Key (name: X-IK-ClientKey), run a CIQ Execution.

8. Delete your configuration.

Step 1

Ingest the nodes needed for this use case.

POST https://eu.api.indykite.com/capture/v1/nodes/Json
{
  "nodes": [
    {
      "external_id": "alice",
      "is_identity": true,
      "type": "Person",
      "properties": [
        {
          "type": "email",
          "value": "alice@email.com"
        },
        {
          "type": "given_name",
          "value": "Alice"
        },
        {
          "type": "last_name",
          "value": "Smith"
        }
      ]
    },
    {
      "external_id": "ryan",
      "is_identity": true,
      "type": "Person",
      "properties": [
        {
          "type": "email",
          "value": "ryan@yahoo.co.uk"
        },
        {
          "type": "given_name",
          "value": "ryan"
        },
        {
          "type": "last_name",
          "value": "mushu"
        }
      ]
    },
    {
      "external_id": "tilda",
      "is_identity": true,
      "type": "Person",
      "properties": [
        {
          "type": "email",
          "value": "tilda@yahoo.co.uk"
        },
        {
          "type": "given_name",
          "value": "tilda"
        },
        {
          "type": "last_name",
          "value": "mushu"
        }
      ]
    },
    {
      "external_id": "cb123",
      "type": "PaymentMethod",
      "properties": [
        {
          "type": "payment_name",
          "value": "Credit Card"
        }
      ]
    },
    {
      "external_id": "kl123",
      "type": "PaymentMethod",
      "properties": [
        {
          "type": "payment_name",
          "value": "Klarna"
        }
      ]
    },
    {
      "external_id": "ct123",
      "type": "Contract",
      "properties": [
        {
          "type": "category",
          "value": "Insurance"
        },
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "hfgrten123",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "ct234",
      "type": "Contract",
      "properties": [
        {
          "type": "category",
          "value": "Insurance"
        },
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "hfgrten234",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "ct985",
      "type": "Contract",
      "properties": [
        {
          "type": "category",
          "value": "Insurance"
        },
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "hfgrten985",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "car1",
      "type": "Vehicle",
      "properties": [
        {
          "type": "category",
          "value": "Car"
        },
        {
          "type": "is_active",
          "value": true
        },
        {
          "type": "vin",
          "value": "rtfhcnvjt471"
        }
      ]
    },
    {
      "external_id": "car2",
      "type": "Vehicle",
      "properties": [
        {
          "type": "category",
          "value": "Car"
        },
        {
          "type": "is_active",
          "value": true
        },
        {
          "type": "vin",
          "value": "kdcbfrt178"
        }
      ]
    },
    {
      "external_id": "truck1",
      "type": "Vehicle",
      "properties": [
        {
          "type": "category",
          "value": "Truck"
        },
        {
          "type": "is_active",
          "value": true
        },
        {
          "type": "vin",
          "value": "sncnrkcldp"
        }
      ]
    },
    {
      "external_id": "license1",
      "type": "LicenseNumber",
      "properties": [
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "AX123456",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "license2",
      "type": "LicenseNumber",
      "properties": [
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "OL123456",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "license3",
      "type": "LicenseNumber",
      "properties": [
        {
          "type": "status",
          "value": "Active"
        },
        {
          "type": "number",
          "value": "VN123456",
          "metadata": {
            "assurance_level": 3,
            "source": "BRREG"
          }
        }
      ]
    },
    {
      "external_id": "company1",
      "type": "Company",
      "properties": [
        {
          "type": "name",
          "value": "Company1"
        },
        {
          "type": "registration",
          "value": "256314523"
        }
      ]
    },
    {
      "external_id": "company2",
      "type": "Company",
      "properties": [
        {
          "type": "name",
          "value": "Company2"
        },
        {
          "type": "registration",
          "value": "942365123"
        }
      ]
    },
    {
      "external_id": "application1",
      "type": "Application",
      "properties": [
        {
          "type": "name",
          "value": "Application"
        }
      ]
    },
    {
      "external_id": "application2",
      "type": "Application",
      "properties": [
        {
          "type": "name",
          "value": "Application2"
        }
      ]
    }
  ]
}

Ingest the relationships needed for this use case.

POST https://eu.api.indykite.com/capture/v1/relationships/Json
{
  "relationships": [
    {
      "source": {
        "external_id": "ryan",
        "type": "Person"
      },
      "target": {
        "external_id": "cb123",
        "type": "PaymentMethod"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "tilda",
        "type": "Person"
      },
      "target": {
        "external_id": "kl123",
        "type": "PaymentMethod"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "alice",
        "type": "Person"
      },
      "target": {
        "external_id": "cb123",
        "type": "PaymentMethod"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "ryan",
        "type": "Person"
      },
      "target": {
        "external_id": "ct123",
        "type": "Contract"
      },
      "type": "ACCEPTED"
    },
    {
      "source": {
        "external_id": "tilda",
        "type": "Person"
      },
      "target": {
        "external_id": "ct234",
        "type": "Contract"
      },
      "type": "ACCEPTED"
    },
    {
      "source": {
        "external_id": "alice",
        "type": "Person"
      },
      "target": {
        "external_id": "ct985",
        "type": "Contract"
      },
      "type": "ACCEPTED"
    },
    {
      "source": {
        "external_id": "ct123",
        "type": "Contract"
      },
      "target": {
        "external_id": "car1",
        "type": "Vehicle"
      },
      "type": "COVERS"
    },
    {
      "source": {
        "external_id": "ct985",
        "type": "Contract"
      },
      "target": {
        "external_id": "car1",
        "type": "Vehicle"
      },
      "type": "COVERS"
    },
    {
      "source": {
        "external_id": "ct234",
        "type": "Contract"
      },
      "target": {
        "external_id": "truck1",
        "type": "Vehicle"
      },
      "type": "COVERS"
    },
    {
      "source": {
        "external_id": "car1",
        "type": "Vehicle"
      },
      "target": {
        "external_id": "license1",
        "type": "LicenseNumber"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "truck1",
        "type": "Vehicle"
      },
      "target": {
        "external_id": "license2",
        "type": "LicenseNumber"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "car2",
        "type": "Vehicle"
      },
      "target": {
        "external_id": "license3",
        "type": "LicenseNumber"
      },
      "type": "HAS"
    },
    {
      "source": {
        "external_id": "company1",
        "type": "Company"
      },
      "target": {
        "external_id": "car1",
        "type": "Vehicle"
      },
      "type": "OWNS"
    },
    {
      "source": {
        "external_id": "company1",
        "type": "Company"
      },
      "target": {
        "external_id": "car2",
        "type": "Vehicle"
      },
      "type": "OWNS"
    },
    {
      "source": {
        "external_id": "company1",
        "type": "Company"
      },
      "target": {
        "external_id": "truck1",
        "type": "Vehicle"
      },
      "type": "OWNS"
    },
    {
      "source": {
        "external_id": "application1",
        "type": "Application"
      },
      "target": {
        "external_id": "company1",
        "type": "Company"
      },
      "type": "HAS_AGREEMENT_WITH"
    },
    {
      "source": {
        "external_id": "application2",
        "type": "Application"
      },
      "target": {
        "external_id": "company1",
        "type": "Company"
      },
      "type": "HAS_AGREEMENT_WITH"
    }
  ]
}

Step 2

Policy which designates the derived query can create the HAS_AGREEMENT_WITH relationship.

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "_Application"
  },
  "condition": {
    "cypher": "MATCH (subject:_Application) MATCH (company:Company)-[r2:OWNS]->(vehicle:Vehicle)",
    "filter": [
      {
        "operator": "AND",
        "operands": [
          {
            "attribute": "subject.external_id",
            "operator": "=",
            "value": "$_appId"
          },
          {
            "attribute": "company.external_id",
            "operator": "=",
            "value": "$companyID"
          }
        ]
      }
    ]
  },
  "allowed_upserts": {
    "relationships": {
      "relationship_types": [
        {
          "type": "HAS_AGREEMENT_WITH",
          "source_node_label": "_Application",
          "target_node_label": "Company"
        }
      ]
    }
  },
  "allowed_reads": {
    "nodes": [
      "company.*",
      "subject.*"
    ]
  }
}

Request to create a CIQ Policy configuration using REST.

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"_Application\"},\"condition\":{\"cypher\":\"MATCH (subject:_Application) MATCH (company:Company)-[r2:OWNS]->(vehicle:Vehicle)\",\"filter\":[{\"operator\":\"AND\",\"operands\":[{\"attribute\":\"subject.external_id\",\"operator\":\"=\",\"value\":\"$_appId\"},{\"attribute\":\"company.external_id\",\"operator\":\"=\",\"value\":\"$companyID\"}]}]},\"allowed_upserts\":{\"relationships\":{\"relationship_types\":[{\"type\":\"HAS_AGREEMENT_WITH\",\"source_node_label\":\"_Application\",\"target_node_label\":\"Company\"}]}},\"allowed_reads\":{\"nodes\":[\"company.*\",\"subject.*\"]}}",
  "status": "ACTIVE",
  "tags": []
}

Request to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 3

The CIQ Query designates the relationship to upsert.

knowledge_query.jsonJson
{
  "nodes": [
    "subject.external_id"
  ],
  "relationships": [
    "r1"
  ],
  "upsert_relationships": [
    {
      "name": "r1",
      "source": "subject",
      "target": "company",
      "type": "HAS_AGREEMENT_WITH"
    }
  ]
}

Request to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"subject.external_id\"],\"relationships\":[\"r1\"],\"upsert_relationships\":[{\"name\":\"r1\",\"source\":\"subject\",\"target\":\"company\",\"type\":\"HAS_AGREEMENT_WITH\"}]}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 4

CIQ Execution request in json format.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "ciq_query_gid",
  "input_params": {
    "companyID": "company1"
  }
}

CIQ Execution response in json format.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "subject.external_id": "application_external_id"
      },
      "relationships": {
        "r1": {
          "Id": 1152932499723124700,
          "ElementId": "5:3a2b09d5-2923-45d7-8453-8b1c698427b0:1152932499723124736",
          "StartId": 0,
          "StartElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:0",
          "EndId": 15,
          "EndElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:15",
          "Type": "HAS_AGREEMENT_WITH",
          "Props": {
            "create_time": "2025-06-09T15:12:46.374Z",
            "id": "48BJHS2CTFKcVpD4cUF8IA",
            "update_time": "2025-06-09T15:12:46.374Z"
          }
        }
      }
    },
    {
      "nodes": {
        "subject.external_id": "application_external_id"
      },
      "relationships": {
        "r1": {
          "Id": 1152932499723124700,
          "ElementId": "5:3a2b09d5-2923-45d7-8453-8b1c698427b0:1152932499723124736",
          "StartId": 0,
          "StartElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:0",
          "EndId": 15,
          "EndElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:15",
          "Type": "HAS_AGREEMENT_WITH",
          "Props": {
            "create_time": "2025-06-09T15:12:46.374Z",
            "id": "48BJHS2CTFKcVpD4cUF8IA",
            "update_time": "2025-06-09T15:12:46.374Z"
          }
        }
      }
    },
    {
      "nodes": {
        "subject.external_id": "application_external_id"
      },
      "relationships": {
        "r1": {
          "Id": 1152932499723124700,
          "ElementId": "5:3a2b09d5-2923-45d7-8453-8b1c698427b0:1152932499723124736",
          "StartId": 0,
          "StartElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:0",
          "EndId": 15,
          "EndElementId": "4:3a2b09d5-2923-45d7-8453-8b1c698427b0:15",
          "Type": "HAS_AGREEMENT_WITH",
          "Props": {
            "create_time": "2025-06-09T15:12:46.374Z",
            "id": "48BJHS2CTFKcVpD4cUF8IA",
            "update_time": "2025-06-09T15:12:46.374Z"
          }
        }
      }
    }
  ]
}

Step 5

CIQ Policy which allows an Application to create a Contract node and link it to existing Person and Vehicle nodes

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "_Application"
  },
  "condition": {
    "cypher": "MATCH (subject:_Application)-[r1:HAS_AGREEMENT_WITH]->(company:Company)-[r2:OWNS]->(vehicle:Vehicle) MATCH (person:Person)",
    "filter": [
      {
        "operator": "AND",
        "operands": [
          {
            "attribute": "subject.external_id",
            "operator": "=",
            "value": "$_appId"
          },
          {
            "attribute": "vehicle.external_id",
            "operator": "=",
            "value": "$vehicleID"
          },
          {
            "attribute": "person.external_id",
            "operator": "=",
            "value": "$personID"
          }
        ]
      }
    ]
  },
  "allowed_upserts": {
    "nodes": {
      "node_types": [
        "Contract"
      ]
    },
    "relationships": {
      "relationship_types": [
        {
          "type": "COVERS",
          "source_node_label": "Contract",
          "target_node_label": "Vehicle"
        },
        {
          "type": "ACCEPTED",
          "source_node_label": "Person",
          "target_node_label": "Contract"
        }
      ]
    }
  },
  "allowed_reads": {
    "nodes": [
      "vehicle.property.*",
      "person.property.*"
    ],
    "relationships": []
  }
}

Request to create a CIQ Policy configuration using REST.

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"_Application\"},\"condition\":{\"cypher\":\"MATCH (subject:_Application)-[r1:HAS_AGREEMENT_WITH]->(company:Company)-[r2:OWNS]->(vehicle:Vehicle) MATCH (person:Person)\",\"filter\":[{\"operator\":\"AND\",\"operands\":[{\"attribute\":\"subject.external_id\",\"operator\":\"=\",\"value\":\"$_appId\"},{\"attribute\":\"vehicle.external_id\",\"operator\":\"=\",\"value\":\"$vehicleID\"},{\"attribute\":\"person.external_id\",\"operator\":\"=\",\"value\":\"$personID\"}]}]},\"allowed_upserts\":{\"nodes\":{\"node_types\":[\"Contract\"]},\"relationships\":{\"relationship_types\":[{\"type\":\"COVERS\",\"source_node_label\":\"Contract\",\"target_node_label\":\"Vehicle\"},{\"type\":\"ACCEPTED\",\"source_node_label\":\"Person\",\"target_node_label\":\"Contract\"}]}},\"allowed_reads\":{\"nodes\":[\"vehicle.property.*\",\"person.property.*\"],\"relationships\":[]}}",
  "status": "ACTIVE",
  "tags": []
}

Request to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 6

The query creates the Contract node and the COVERS and ACCEPTED relationships.

Note that the external_id and number for the Contract node are parameterized (variable names starting with $),

and their actual values are provided at execution time.

knowledge_query.jsonJson
{
  "nodes": [
    "contract.external_id",
    "contract.property.number"
  ],
  "relationships": [],
  "upsert_nodes": [
    {
      "name": "contract",
      "type": "Contract",
      "external_id": "$contract_external_id",
      "properties": [
        {
          "type": "number",
          "value": "$contractNumber"
        },
        {
          "type": "status",
          "value": "Active"
        }
      ]
    }
  ],
  "upsert_relationships": [
    {
      "name": "r3",
      "source": "contract",
      "target": "vehicle",
      "type": "COVERS"
    },
    {
      "name": "r4",
      "source": "person",
      "target": "contract",
      "type": "ACCEPTED"
    }
  ]
}

Request to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"contract.external_id\",\"contract.property.number\"],\"relationships\":[],\"upsert_nodes\":[{\"name\":\"contract\",\"type\":\"Contract\",\"external_id\":\"$contract_external_id\",\"properties\":[{\"type\":\"number\",\"value\":\"$contractNumber\"},{\"type\":\"status\",\"value\":\"Active\"}]}],\"upsert_relationships\":[{\"name\":\"r3\",\"source\":\"contract\",\"target\":\"vehicle\",\"type\":\"COVERS\"},{\"name\":\"r4\",\"source\":\"person\",\"target\":\"contract\",\"type\":\"ACCEPTED\"}]}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 7

CIQ Execution request.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "vehicleID": "car2",
    "personID": "ryan",
    "contract_external_id": "ct853",
    "contractNumber": "rbjh853"
  }
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "contract.external_id": "ct853",
        "contract.property.number": "rbjh853"
      }
    }
  ]
}

Step 8

Delete the CIQ Queries.

DELETE https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Delete the CIQ Policies.

DELETE https://eu.api.indykite.com/configs/v1/authorization-policies/{id}Json
{
  "id": "your_policy_configuration_gid"
}

Tags

CIQ Policy CIQ Query CIQ Execution Security

Related Resources

ContX IQ basic example

ContX IQ Python

ContX IQ: list authorized resources.

ContX IQ Python

ContX IQ: allow READ action

ContX IQ Json

ContX IQ: upsert relationships

ContX IQ Json

ContX IQ: delete nodes and relationships.

ContX IQ Json

ContX IQ: loyalty program.

ContX IQ Json

ContX IQ: link the _Application node to other data in the IKG.

ContX IQ Json

ContX IQ: With _Application node as a subject, read resources and upsert relationships and nodes.

ContX IQ Json

ContX IQ: With User node as a subject, read resources and upsert relationships and nodes.

ContX IQ Json

ContX IQ: With Person node as a subject, gives a company a consent on a payment method and then revokes it.

ContX IQ Json
