ContX IQ: With User node as a subject, read resources and upsert relationships and nodes.

This use case explains how to create a user node from an access token, link it with ingested data, read the modified data and upsert new nodes according to policies scopes.

ContX IQ: With User node as a subject, read resources and upsert relationships and nodes.

Link a user access token with existing captured data and use this authorization to upsert data within the scope of a policy with a user as subject.

Use case

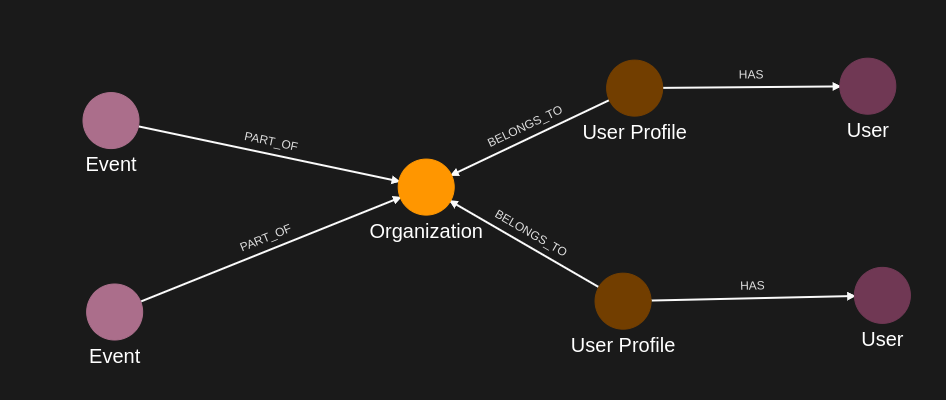

In this case, a user access token is sent and introspected to create a new User node, linked with a UserProfile node with a Member role in an Organization node.

Secondly, a user access token is sent and introspected to create a new User node, linked with a UserProfile node with an Admin role in an Organization node.

The Organization node is linked with Event nodes.

Then a READ query is executed on the UserProfile node with a Member role to verify that he can see the Event nodes.

Finally, a WRITE query is executed on the UserProfile node with an Admin role to create a new Event node and link it to the Organization.

ikg

Requirements

- ServiceAccount credentials created in the IndyKite Hub for your organization.

- AppAgent credentials created in the IndyKite Hub, using the REST endpoints or using Terraform for your Project / Application.

- Access tokens for the 2 UserProfile nodes

User Access tokens are sent in CIQ Execution in Headers: key:Authorization, value:Bearer token.

Steps

1. Using the AppAgent credential as API Key (name: X-IK-ClientKey), ingest data in your IKG (IndyKite Knowledge Graph) using the script provided.

2. Using the ServiceAccount credential as Bearer token, create a CIQ Policy which designates the Subject nodes can be read, the User nodes can be upserted and relationships between User and UserProfile can be upserted.

3. Using the ServiceAccount credential as Bearer token, create a CIQ Query in the context of the policy to retrieve and upsert the data.

4. Using the AppAgent credential as API Key (name: X-IK-ClientKey), run a CIQ Execution to create a User node from the first access token and link it to the corresponding UserProfile.

5. Using the AppAgent credential as API Key (name: X-IK-ClientKey), run a CIQ Execution to create a User node from the second access token and link it to the corresponding UserProfile.

6. Using the ServiceAccount credential as Bearer token, create a CIQ Policy which designates the nodes which are allowed to read the Event nodes linked to the Organization nodes they have a relationship with, according to a specific role.

7. Using the ServiceAccount credential as Bearer token, create a CIQ Query in the context of the policy to retrieve data.

8. Using the AppAgent credential as API Key (name: X-IK-ClientKey), run a CIQ Execution to read the data.

9. Using the ServiceAccount credential as Bearer token, create a CIQ Policy which designates the nodes which are allowed to upsert Event nodes linked to the Organization nodes they have a relationship with, according to a specific role.

10. Using the ServiceAccount credential as Bearer token, create a CIQ Query in the context of the policy to upsert an Event node.

11. Using the AppAgent credential as API Key (name: X-IK-ClientKey), run a CIQ Execution to upsert an Event node.

Step 1

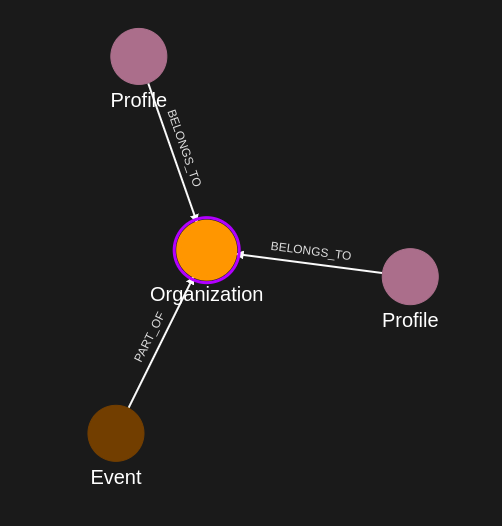

Ingest the nodes needed for this use case.

POST https://eu.api.indykite.com/capture/v1/nodes/Json
{
  "nodes": [
    {
      "external_id": "alice",
      "type": "UserProfile",
      "properties": [
        {
          "type": "email",
          "value": "alice@email.com"
        }
      ]
    },
    {
      "external_id": "bob",
      "type": "UserProfile",
      "properties": [
        {
          "type": "email",
          "value": "bob@email.com"
        }
      ]
    },
    {
      "external_id": "org1",
      "type": "Organization",
      "properties": [
        {
          "type": "name",
          "value": "Org1"
        }
      ]
    },
    {
      "external_id": "event_lambda",
      "type": "Event",
      "labels": [],
      "is_identity": false,
      "properties": [
        {
          "type": "title",
          "value": "Event Lambda",
          "metadata": {
            "assurance_level": 1,
            "source": "Some Source",
            "verified_time": "2024-04-10T06:28:16Z"
          }
        },
        {
          "type": "startDate",
          "value": "2025-01-01",
          "metadata": {
            "assurance_level": 1,
            "source": "Some Source",
            "verified_time": "2025-04-10T06:28:16Z"
          }
        },
        {
          "type": "link",
          "value": "https://events.com",
          "metadata": {
            "assurance_level": 1,
            "source": "Some Source",
            "verified_time": "2025-04-10T06:28:16Z"
          }
        },
        {
          "type": "description",
          "value": "Description ...",
          "metadata": {
            "assurance_level": 1,
            "source": "Some Source",
            "verified_time": "2025-04-10T06:28:16Z"
          }
        }
      ]
    }
  ]
}

Ingest the relationships needed for this use case.

POST https://eu.api.indykite.com/capture/v1/relationships/Json
{
  "relationships": [
    {
      "source": {
        "external_id": "alice",
        "type": "UserProfile"
      },
      "target": {
        "external_id": "org1",
        "type": "Organization"
      },
      "type": "BELONGS_TO",
      "properties": [
        {
          "type": "role",
          "value": "Member"
        }
      ]
    },
    {
      "source": {
        "external_id": "bob",
        "type": "UserProfile"
      },
      "target": {
        "external_id": "org1",
        "type": "Organization"
      },
      "type": "BELONGS_TO",
      "properties": [
        {
          "type": "role",
          "value": "Admin"
        }
      ]
    },
    {
      "source": {
        "external_id": "event_lambda",
        "type": "Event"
      },
      "target": {
        "external_id": "org1",
        "type": "Organization"
      },
      "type": "PART_OF"
    }
  ]
}

Step 2

Create a CIQ Policy which designates the Subject nodes can be read,

the User nodes can be upserted and relationships between User and UserProfile can be upserted.

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "UserProfile"
  },
  "condition": {
    "cypher": "MATCH (subject:UserProfile)",
    "filter": [
      {
        "operator": "=",
        "attribute": "subject.external_id",
        "value": "$subject_external_id"
      }
    ]
  },
  "allowed_reads": {
    "nodes": [
      "subject",
      "subject.*"
    ]
  },
  "allowed_upserts": {
    "nodes": {
      "node_types": [
        "User"
      ]
    },
    "relationships": {
      "relationship_types": [
        {
          "type": "HAS",
          "source_node_label": "UserProfile",
          "target_node_label": "User"
        }
      ]
    }
  }
}

Request to create the CIQ Policy configuration using REST.

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"UserProfile\"},\"condition\":{\"cypher\":\"MATCH (subject:UserProfile)\",\"filter\":[{\"operator\":\"=\",\"attribute\":\"subject.external_id\",\"value\":\"$subject_external_id\"}]},\"allowed_reads\":{\"nodes\":[\"subject\",\"subject.*\"]},\"allowed_upserts\":{\"nodes\":{\"node_types\":[\"User\"]},\"relationships\":{\"relationship_types\":[{\"type\":\"HAS\",\"source_node_label\":\"UserProfile\",\"target_node_label\":\"User\"}]}}}",
  "status": "ACTIVE",
  "tags": []
}

Request to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 3

Create a CIQ Query in the context of the policy to retrieve and upsert the data.

knowledge_query.jsonJson
{
  "nodes": [
    "subject",
    "subject.property.email",
    "user.property.email"
  ],
  "relationships": [],
  "upsert_nodes": [
    {
      "name": "user",
      "type": "User",
      "external_id": "$token.sub",
      "properties": [
        {
          "type": "email",
          "value": "$email"
        }
      ]
    }
  ],
  "upsert_relationships": [
    {
      "name": "has",
      "source": "subject",
      "target": "user",
      "type": "HAS"
    }
  ]
}

Request to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"subject\",\"subject.property.email\",\"user.property.email\"],\"relationships\":[],\"upsert_nodes\":[{\"name\":\"user\",\"type\":\"User\",\"external_id\":\"$token.sub\",\"properties\":[{\"type\":\"email\",\"value\":\"$email\"}]}],\"upsert_relationships\":[{\"name\":\"has\",\"source\":\"subject\",\"target\":\"user\",\"type\":\"HAS\"}]}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 4

Run a CIQ Execution to create a User node from the first access token and link it to the corresponding UserProfile.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "subject_external_id": "alice",
    "user_external_id": "alice_user_external_id",
    "email": "alice@email.com"
  },
  "page_token": 1
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "subject": {
          "Id": 14,
          "ElementId": "4:0f1c76a0-92f1-4474-80af-aa4c317e636a:14",
          "Labels": [
            "Unique",
            "Resource",
            "UserProfile"
          ],
          "Props": {
            "_service": "capture-api",
            "create_time": "2025-06-13T16:08:25.47Z",
            "external_id": "alice",
            "id": "4H1gEySmTGasbkjWDyyuXg",
            "type": "UserProfile",
            "update_time": "2025-06-13T16:08:25.47Z"
          }
        },
        "subject.property.email": "alice@email.com",
        "user.property.email": "alice@email.com"
      }
    }
  ]
}

Step 5

Run a CIQ Execution to create a User node from the second access token and link it to the corresponding UserProfile.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "subject_external_id": "bob",
    "user_external_id": "bob_user_external_id",
    "email": "bob@email.com"
  },
  "page_token": 1
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "subject": {
          "Id": 15,
          "ElementId": "4:0f1c76a0-92f1-4474-80af-aa4c317e636a:15",
          "Labels": [
            "Unique",
            "Resource",
            "UserProfile"
          ],
          "Props": {
            "_service": "capture-api",
            "create_time": "2025-06-13T16:08:25.47Z",
            "external_id": "bob",
            "id": "lIHALUiJSSiwVCff51KxxA",
            "type": "UserProfile",
            "update_time": "2025-06-13T16:08:25.47Z"
          }
        },
        "subject.property.email": "bob@email.com",
        "user.property.email": "bob@email.com"
      }
    }
  ]
}

Step 6

Create a CIQ Policy which designates the nodes which are allowed to read the Event nodes linked to the Organization nodes they have a relationship with, according to a specific role.

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "UserProfile"
  },
  "condition": {
    "cypher": "MATCH (user:User)<-[:HAS]-(subject:UserProfile)-[bt:BELONGS_TO]->(org:Organization)<-[:PART_OF]-(event:Event)",
    "filter": [
      {
        "operator": "AND",
        "operands": [
          {
            "operator": "=",
            "attribute": "subject.external_id",
            "value": "$subject_external_id"
          },
          {
            "operator": "=",
            "attribute": "user.external_id",
            "value": "$token.sub"
          },
          {
            "operator": "=",
            "attribute": "bt.role",
            "value": "Member"
          }
        ]
      }
    ]
  },
  "allowed_reads": {
    "nodes": [
      "event",
      "event.*",
      "org.external_id",
      "subject.property.name"
    ]
  }
}

Json to create the CIQ Policy configuration using REST.

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"UserProfile\"},\"condition\":{\"cypher\":\"MATCH (user:User)<-[:HAS]-(subject:UserProfile)-[bt:BELONGS_TO]->(org:Organization)<-[:PART_OF]-(event:Event)\",\"filter\":[{\"operator\":\"AND\",\"operands\":[{\"operator\":\"=\",\"attribute\":\"subject.external_id\",\"value\":\"$subject_external_id\"},{\"operator\":\"=\",\"attribute\":\"user.external_id\",\"value\":\"$token.sub\"},{\"operator\":\"=\",\"attribute\":\"bt.role\",\"value\":\"Member\"}]}]},\"allowed_reads\":{\"nodes\":[\"event\",\"event.*\",\"org.external_id\",\"subject.property.name\"]}}",
  "status": "ACTIVE",
  "tags": []
}

Json to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 7

Create a CIQ Query in the context of the policy to retrieve data.

knowledge_query.jsonJson
{
  "nodes": [
    "event"
  ],
  "filter": {
    "attribute": "subject.property.email",
    "operator": "=",
    "value": "$email"
  }
}

Json to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"event\"],\"filter\":{\"attribute\":\"subject.property.email\",\"operator\":\"=\",\"value\":\"$email\"}}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 8

Run a CIQ Execution to read the data.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "email": "alice@email.com",
    "subject_external_id": "alice"
  },
  "page_token": 1
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "event": {
          "Id": 8,
          "ElementId": "4:0f1c76a0-92f1-4474-80af-aa4c317e636a:8",
          "Labels": [
            "Unique",
            "Resource",
            "Event"
          ],
          "Props": {
            "_service": "capture-api",
            "create_time": "2025-06-13T16:08:11.293Z",
            "external_id": "event_lambda",
            "id": "ABeHsubWR7a3Yj0lOSuKRA",
            "type": "Event",
            "update_time": "2025-06-13T16:08:11.293Z"
          }
        }
      }
    }
  ]
}

Step 9

Create a CIQ Policy which designates the nodes which are allowed to upsert Event nodes linked to the Organization nodes they have a relationship with, according to a specific role.

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "UserProfile"
  },
  "condition": {
    "cypher": "MATCH (user:User)<-[:HAS]-(subject:UserProfile)-[bt:BELONGS_TO]->(org:Organization)",
    "filter": [
      {
        "operator": "AND",
        "operands": [
          {
            "operator": "=",
            "attribute": "subject.external_id",
            "value": "$profile_external_id"
          },
          {
            "operator": "=",
            "attribute": "$token.sub",
            "value": "$user_external_id"
          },
          {
            "operator": "=",
            "attribute": "bt.role",
            "value": "Admin"
          }
        ]
      }
    ]
  },
  "allowed_reads": {
    "nodes": [
      "org.external_id",
      "subject.property.name"
    ]
  },
  "allowed_upserts": {
    "nodes": {
      "node_types": [
        "Event"
      ]
    },
    "relationships": {
      "relationship_types": [
        {
          "type": "PART_OF",
          "source_node_label": "Event",
          "target_node_label": "Organization"
        }
      ]
    }
  }
}

Json to create the CIQ Policy configuration using REST.

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"UserProfile\"},\"condition\":{\"cypher\":\"MATCH (user:User)<-[:HAS]-(subject:UserProfile)-[bt:BELONGS_TO]->(org:Organization)\",\"filter\":[{\"operator\":\"AND\",\"operands\":[{\"operator\":\"=\",\"attribute\":\"subject.external_id\",\"value\":\"$profile_external_id\"},{\"operator\":\"=\",\"attribute\":\"$token.sub\",\"value\":\"$user_external_id\"},{\"operator\":\"=\",\"attribute\":\"bt.role\",\"value\":\"Admin\"}]}]},\"allowed_reads\":{\"nodes\":[\"org.external_id\",\"subject.property.name\"]},\"allowed_upserts\":{\"nodes\":{\"node_types\":[\"Event\"]},\"relationships\":{\"relationship_types\":[{\"type\":\"PART_OF\",\"source_node_label\":\"Event\",\"target_node_label\":\"Organization\"}]}}}",
  "status": "ACTIVE",
  "tags": []
}

Json to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 10

Create a CIQ Query in the context of the policy to upsert an Event node.

knowledge_query.jsonJson
{
  "nodes": [
    "event",
    "event.property.title",
    "event.property.link"
  ],
  "relationships": [],
  "upsert_nodes": [
    {
      "name": "event",
      "type": "Event",
      "external_id": "$eventId",
      "properties": [
        {
          "type": "title",
          "value": "$title"
        },
        {
          "type": "link",
          "value": "$link"
        }
      ]
    }
  ],
  "upsert_relationships": [
    {
      "name": "part",
      "source": "event",
      "target": "org",
      "type": "PART_OF"
    }
  ]
}

Json to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"event\",\"event.property.title\",\"event.property.link\"],\"relationships\":[],\"upsert_nodes\":[{\"name\":\"event\",\"type\":\"Event\",\"external_id\":\"$eventId\",\"properties\":[{\"type\":\"title\",\"value\":\"$title\"},{\"type\":\"link\",\"value\":\"$link\"}]}],\"upsert_relationships\":[{\"name\":\"part\",\"source\":\"event\",\"target\":\"org\",\"type\":\"PART_OF\"}]}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 11

Run a CIQ Execution to upsert an Event node.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "profile_external_id": "bob",
    "user_external_id": "bob_user_external_id",
    "eventId": "event14",
    "title": "Event in the parking lot",
    "link": "https://www.example.com"
  },
  "page_token": 1
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "event": {
          "Id": 24,
          "ElementId": "4:0f1c76a0-92f1-4474-80af-aa4c317e636a:24",
          "Labels": [
            "Unique",
            "Resource",
            "Event"
          ],
          "Props": {
            "create_time": "2025-06-13T16:23:53.388Z",
            "external_id": "event14",
            "id": "sYE-gBnaRQeRO6gZdHA59A",
            "type": "Event",
            "update_time": "2025-06-13T16:23:53.388Z"
          }
        },
        "event.property.link": "https://www.example.com",
        "event.property.title": "Event in the parking lot"
      }
    }
  ]
}

ikg

Tags

CIQ Policy CIQ Query CIQ Execution Security

Related Resources

ContX IQ basic example

ContX IQ Python

ContX IQ: list authorized resources.

ContX IQ Python

ContX IQ: allow READ action

ContX IQ Json

ContX IQ: allow creation nodes and relationships.

ContX IQ Json

ContX IQ: upsert relationships

ContX IQ Json

ContX IQ: delete nodes and relationships.

ContX IQ Json

ContX IQ: loyalty program.

ContX IQ Json

ContX IQ: link the _Application node to other data in the IKG.

ContX IQ Json

ContX IQ: With _Application node as a subject, read resources and upsert relationships and nodes.

ContX IQ Json

ContX IQ: With Person node as a subject, gives a company a consent on a payment method and then revokes it.

ContX IQ Json
