Azure Event Grid Outbound Events / Signal - Capture

Steps to create the Outbound Events configuration in a project with Azure Event Grid as provider.

Use case

One Outbound Events configuration can be set per project.

The configuration will send events to the defined providers through the designated routes each time a modification is made in the stipulated IKG section.

In this use case, a configuration is created to send a message each time an upsert action is executed, through the Capture Nodes REST endpoint, on any node with a Car label and a property manufacturer with value pontiac.

To know the supported filters, go to the Terraform plugin registry:

See more details

Requirements

- ServiceAccount credentials created in the IndyKite Hub for your organization.

- AppAgent credentials created in the IndyKite Hub, using the REST endpoints or using Terraform for your Project / Application.

- A valid Azure Event Grid subscription.

Steps

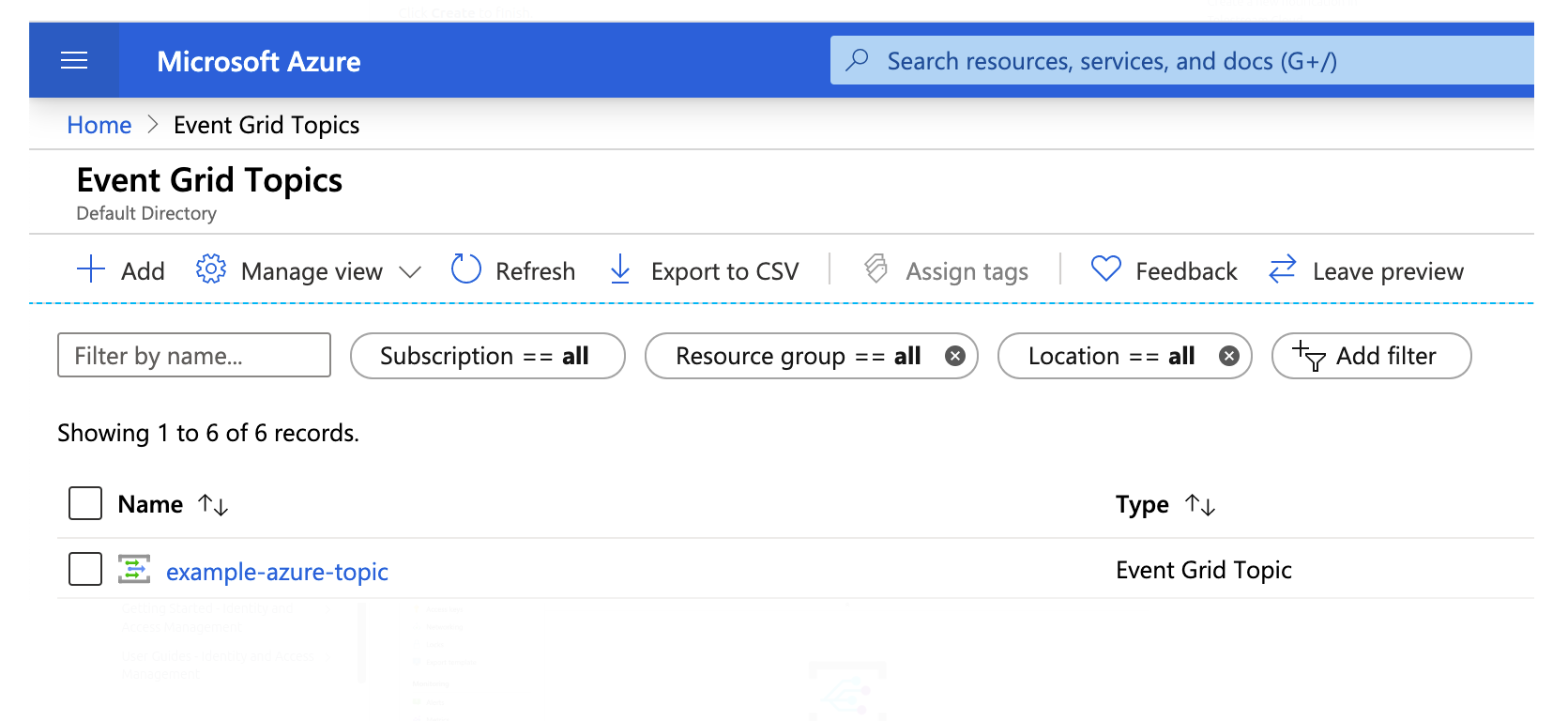

1. Have an Azure Event Grid subscription and a topic ready.

2. Create an Outbound Events configuration with indykite.audit.capture.batch.upsert.node eventType and key pairs in a route for an Azure Event Grid provider.

3. Ingest data with some node with a Car label and a property manufacturer with value pontiac, in the IndyKite platform through the hub or the REST endpoint.

4. Add other nodes with a Car label and a property manufacturer with value pontiac.

5. Check that messages are received in the topic each time an upsert action is executed, through the Capture Nodes REST endpoint, on any node with a Car label and a property manufacturer with value pontiac.

6. Check that events related to nodes with other properties or related to other actions are not sent to the topic.

{
  "project_id": "your_project_gid",
  "description": "description of eventsink",
  "display_name": "eventsink name",
  "name": "eventsink-name",
  "providers": {
    "provider-with-azure-event-grid": {
      "azure_event_grid": {
        "topicEndpoint": "https://ik-test.eventgrid.azure.net/api/events",
        "accessKey": "secret-access-key"
      }
    }
  },
  "routes": [
    {
      "provider_id": "provider-with-azure-event-grid",
      "event_type_key_values_filter": {
        "context_key_value": [
          {
            "key": "manufacturer",
            "value": "pontiac"
          },
          {
            "key": "captureLabel",
            "value": "Car"
          }
        ],
        "event_type": "indykite.audit.capture.upsert.node"
      },
      "stop_processing": true,
      "display_name": "Configuration Audit Events"
    }
  ]
}

{
  "nodes": [
    {
      "external_id": "alice",
      "is_identity": true,
      "type": "Person",
      "properties": [
        {
          "type": "email",
          "value": "alice@email.com"
        },
        {
          "type": "given_name",
          "value": "Alice"
        },
        {
          "type": "last_name",
          "value": "Smith"
        }
      ]
    },
    {
      "external_id": "knightrider",
      "type": "Person",
      "is_identity": true,
      "properties": [
        {
          "type": "email",
          "value": "knightrider@demo.com"
        },
        {
          "type": "name",
          "value": "Michael Knight"
        }
      ]
    },
    {
      "external_id": "satchmo",
      "type": "Person",
      "is_identity": true,
      "properties": [
        {
          "type": "email",
          "value": "satchmo@demo.com"
        },
        {
          "type": "name",
          "value": "Louis Armstrong"
        }
      ]
    },
    {
      "external_id": "karel",
      "type": "Person",
      "is_identity": true,
      "properties": [
        {
          "type": "email",
          "value": "karel@demo.com"
        },
        {
          "type": "name",
          "value": "Karel Plihal"
        }
      ]
    },
    {
      "external_id": "kitt",
      "type": "Car",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "pontiac"
        },
        {
          "type": "model",
          "value": "Firebird"
        }
      ]
    },
    {
      "external_id": "cadillacv16",
      "type": "Car",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "Cadillac"
        },
        {
          "type": "model",
          "value": "V-16"
        }
      ]
    },
    {
      "external_id": "harmonika",
      "type": "Bus",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "Ikarus"
        },
        {
          "type": "model",
          "value": "280"
        }
      ]
    },
    {
      "external_id": "listek",
      "type": "Ticket",
      "is_identity": false
    },
    {
      "external_id": "airbook-xyz",
      "type": "Laptop",
      "is_identity": false
    }
  ]
}

{
  "nodes": [
    {
      "external_id": "kitten",
      "type": "Car",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "pontiac"
        },
        {
          "type": "model",
          "value": "Bonneville"
        }
      ]
    },
    {
      "external_id": "kitty",
      "type": "Car",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "pontiac"
        },
        {
          "type": "model",
          "value": "Catalina"
        }
      ]
    }
  ]
}
