How to use the MCP server? - IndyKite Developer Hub

MCP URL

MCP_REGIONAL_PUBLIC_URL = https://eu.mcp.indykite.com | https://us.mcp.indykite.com

MCP URL = MCP_REGIONAL_PUBLIC_URL/mcp/v1/<project_gid>

Requirements

environment created on the IK platform: project, application, application agent, application agent credentials, token introspect configuration.
- See: https://developer.indykite.com/resources/environment-1

project gid

data captured, KBAC policy created, ContXIQ policy and Knowledge query created
- https://developer.indykite.com/resources/mcp-1

Access

The server needs 2 layers of authorization:

X-IK-ClientKey Api Key with AppAgent token as value.
- Create an AppAgent token with a short time validity only to access the MCP server with at least Authorization and ContXIQ Api permissions.

  See: https://openapi.indykite.com/api-documentation-config#POST/application-agent-credentials
- The Api Key is used to access the platform.

Oauth 2 Authorization Bearer token.
- Create a Bearer token using an allowed issuer
- The Bearer token will be introspected following the Token Introspect configuration corresponding to the issuer.
- To create a Token Introspect configuration: https://openapi.indykite.com/api-documentation-config#POST/token-introspects
- The Bearer token is used as the subject in the MCP requests.

Example to create AppAgent credentials with a token and to create a Token Introspect configuration: https://developer.indykite.com/resources/environment-1

The server sends JSON-RPC requests via HTTP POST to a single MCP endpoint

The server may create a session and return Mcp-Session-Id on initialize; the client must then include it on subsequent calls

The server implements the OAuth 2.0 Protected Resource Metadata (RFC9728); to indicate the locations of authorization servers.

The MCP server uses the official GO SDK https://github.com/modelcontextprotocol/go-sdk : so we can also use the GO SDK client to access it.

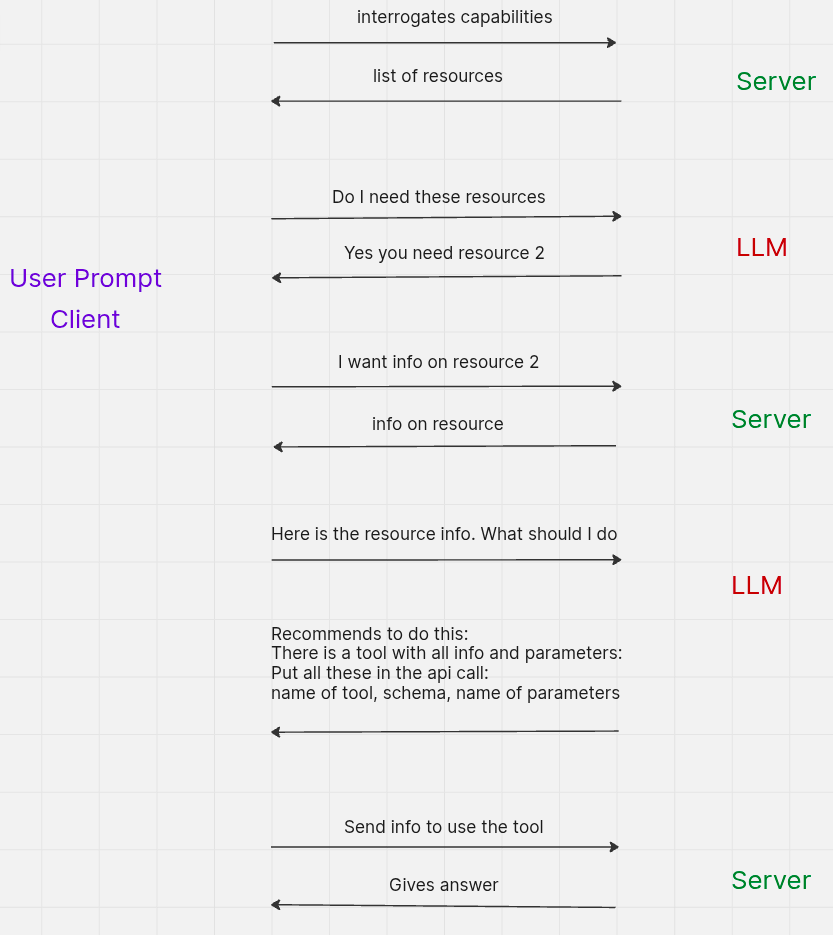

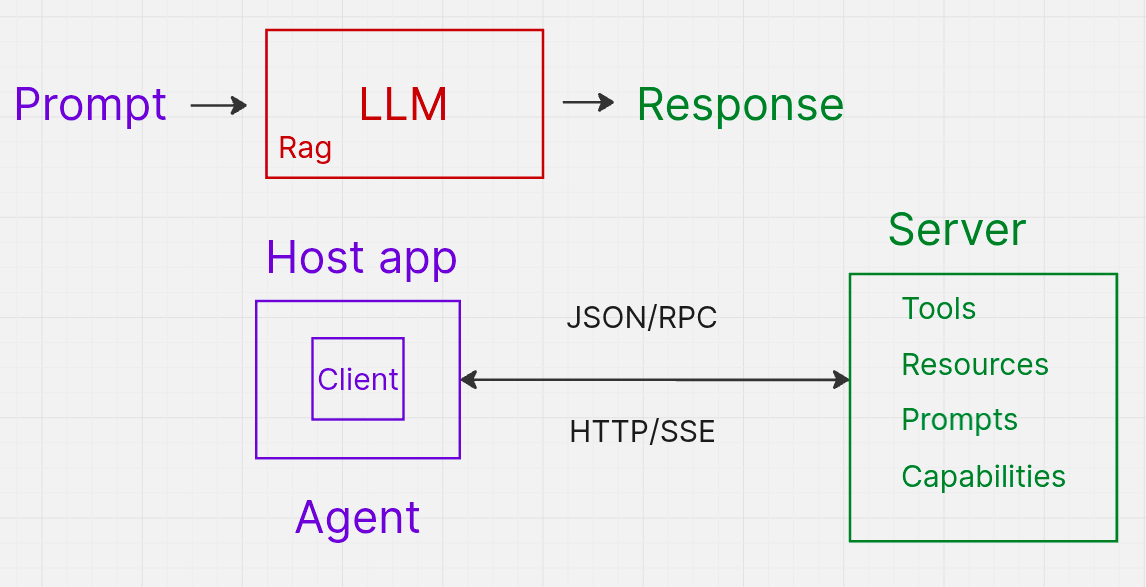

MCP process

MCP Endpoints calls with HTTP

MCP initialization

curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-d '{
      "jsonrpc": "2.0",
      "id": 1,
      "method": "initialize",
      "params": {
        "protocolVersion": "2025-11-25",
        "capabilities": {},
        "clientInfo": {"name": "curl", "version": "1.0"}
      }
    }'

->returns Mcp-Session-Id

Request without $BEARER_TOKEN

curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "X-IK-ClientKey: $API_KEY"
-d '{
      "jsonrpc": "2.0",
      "id": 1,
      "method": "initialize",
      "params": {
        "protocolVersion": "2025-11-25",
        "capabilities": {},
        "clientInfo": {"name": "curl", "version": "1.0"}
      }
    }'

-> returns 401 Unauthorized

->returns .well-known/oauth-protected-resource

Contact IndyKite to have your providers and scopes for each project added into the .well-known/oauth-protected-resource file.

Check MCP initialized

curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-d '{
      "jsonrpc": "2.0",
      "id": 1,
      "method": "notifications/initialized",
      "params": {
        "protocolVersion": "2025-11-25",
        "capabilities": {},
        "clientInfo": {"name": "curl", "version": "1.0"}
      }
    }'

MCP list resources

    curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-d '{
      "jsonrpc": "2.0",
      "id": 2,
      "method": "resources/list",
      "params": {}
    }'

MCP list tools

curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-d '{
      "jsonrpc": "2.0",
      "id": 3,
      "method": "tools/list",
      "params": {}
    }'

Knowledge Queries list resource

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-d '{
      "jsonrpc": "2.0",
      "id": 4,
      "method": "resources/read",
      "params": {
        "uri": "indykite://knowledge-queries/"
      }
    }'

-> returns list of ids and descriptions with all the information necessary for an agent to know how to call the CIQ execute tools, written in an agent-friendly way.

AuthZEN evaluation tool

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random values to adapt in arguments
# subject_id is Bearer token sub
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 5,
      "method": "tools/call",
      "params": {
        "name": "authzen_evaluate",
        "arguments": {
          "subject_type": "Person",
          "subject_id": "alice",
          "resource_type": "Car",
          "resource_id": "cadillacv16",
          "action_name": "CAN_DRIVE"
        }
      }
    }'

AuthZEN evaluations tool

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random values to adapt in arguments
# subject_id is Bearer token sub
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 6,
      "method": "tools/call",
      "params": {
        "name": "authzen_evaluations",
        "arguments": {
          "subject_type": "user",
          "subject_id": "user-123",
          "evaluations": [
            {"action": {"name": "read"}, "resource": {"type": "doc", "id": "doc1"}},
            {"action": {"name": "write"}, "resource": {"type": "doc", "id": "doc2"}}
          ]
        }
      }
    }'

AuthZEN search resource tool

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random values to adapt in arguments
# subject_id is Bearer token sub
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 7,
      "method": "tools/call",
       "params": {
        "name": "authzen_search_resource",
        "arguments": {
          "subject_type": "User",
          "subject_id": "user-123",
          "action_name": "READ",
          "resource_type": "Document"
        }
      }
    }'

AuthZEN search action tool

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random values to adapt in arguments
# subject_id is Bearer token sub
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 8,
      "method": "tools/call",
      "params": {
        "name": "authzen_search_action",
        "arguments": {
          "subject_type": "User",
          "subject_id": "user-123",
          "resource_type": "Document",
          "resource_id": "doc-456"
        }
      }
    }'

CIQ (ContX IQ) execution tool

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random keys/values to adapt in input_params
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 9,
      "method": "tools/call",
      "params": {
        "name": "ciq_execute",
        "arguments": {
          "id": "<knowledge_query_id>,
          "input_params": {"license": "AL98745", "app_external_id": "applicationParking"}
        }
      }
    }'
